[案例 201704-01] 200KVA Agil UPS 系統機柜功安裝在位于蘇州相城區的蘇州易德龍電器股份有限公司
[Sales Case 201704-01] 200KVA Agil UPS System cabinet has been installed into Suzhou Etron Technologies Co., Ltd in Suzhou

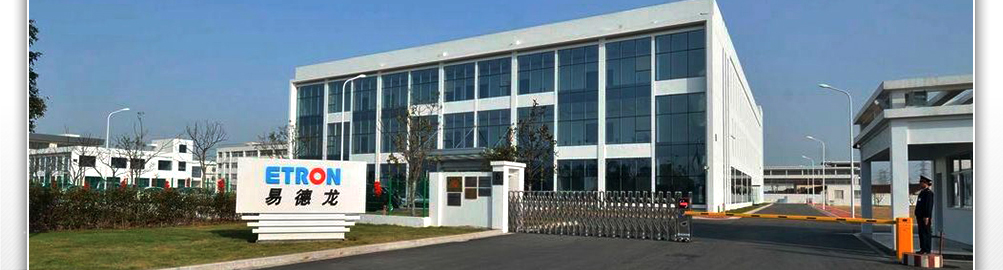

地點：蘇州易德龍電器股份有限公司
Location: Suzhou Etron Technologies Co., Ltd
產品：200KVA Agil UPS 系統機柜 + 2臺20KVA Agil UPS
Product: 200KVA Agil UPS System Cabinet + 2臺20KVA Agil UPS
數量：1
Qty: 1
西伊加梯電源的1臺200KVA Agil UPS 系統機柜和2臺20kVA Agil UPS模塊于2017年4月安裝在蘇州易德龍電器股份有限公司的IT機房。
1 set of 200KVA Agil UPS system cabinet with 2pcs 20KVA Agil UPS module have been installed in IT room in Suzhou Etron Technologies Co., Ltd in Suzhou city, China
|
客戶需求 Customer needs

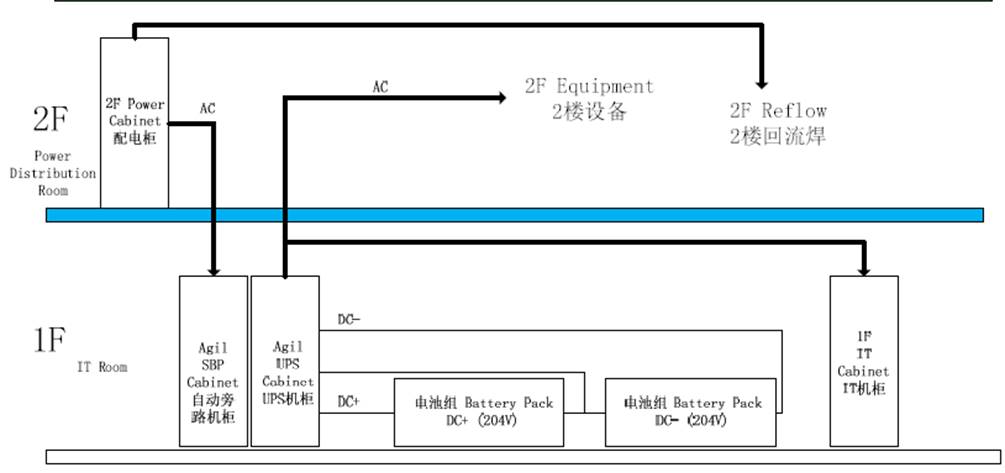

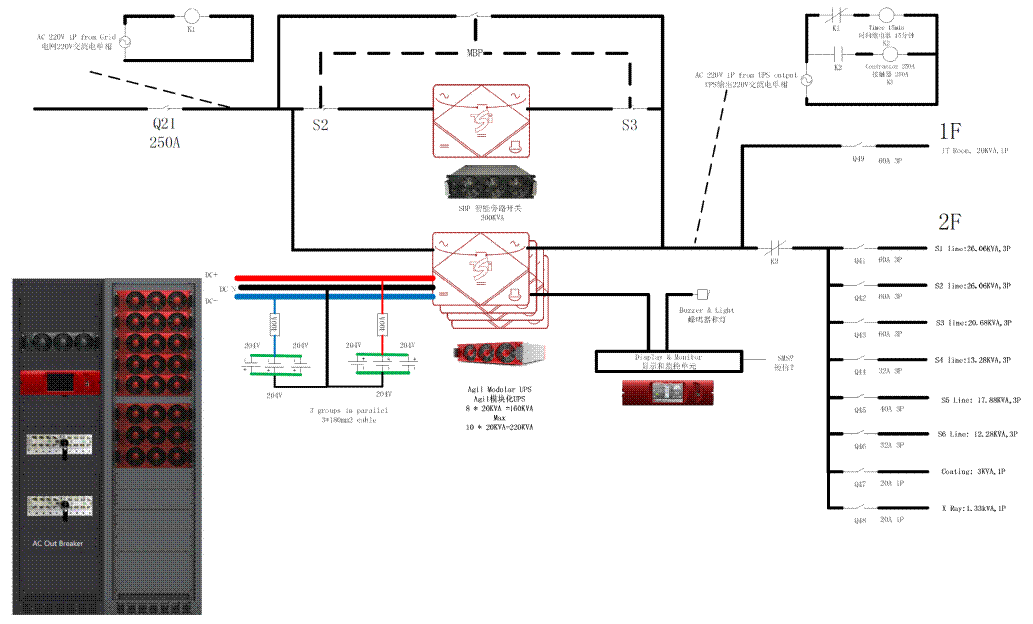

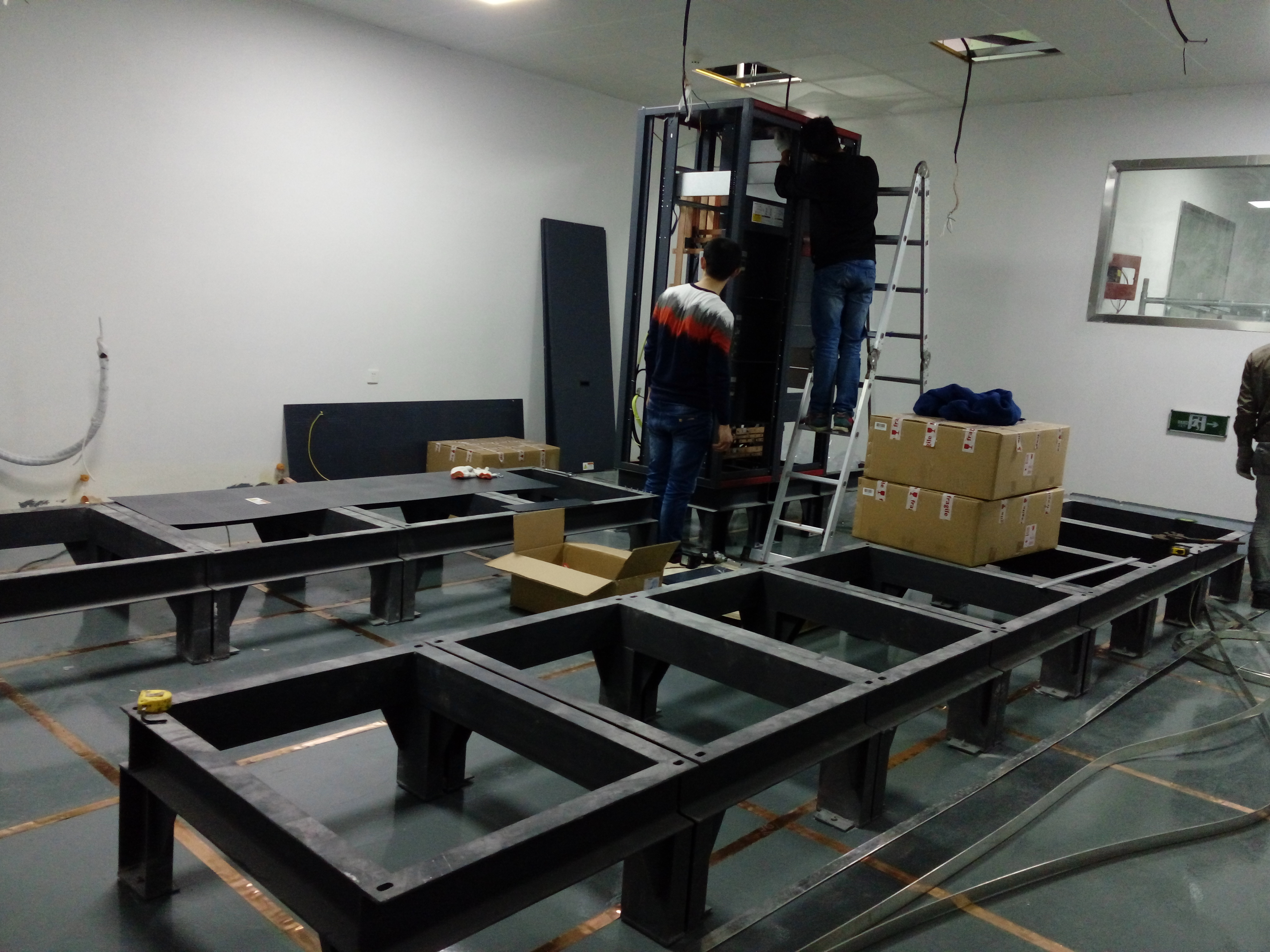

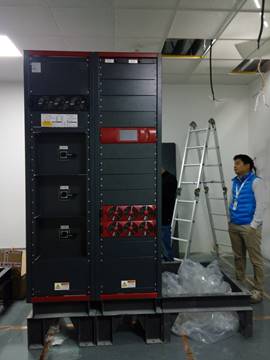

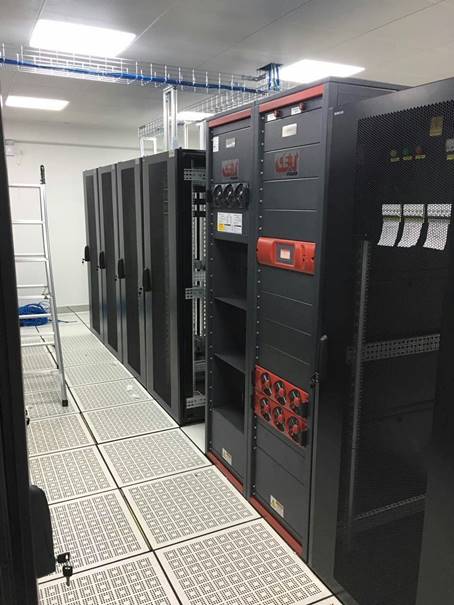

Proposal recommended by CE+T Power: 一樓IT機房和二樓生產線可以采用一套200KVA Agil UPS 系統機柜 + 8臺20KVA Agil UPS 模塊，共160KVA，以后可擴展到最多200KVA。設備安裝在IT機房，2樓的配電房就在IT機房上，可以最大限度地利用原有的電纜。 IT room on 1st floor and production line on 2nd floor can use 1 set 200KVA Agil UPS system + 8 x 20KVA Agil UPS module, total 160KVA, can be expanded to 200KVA. Because power distribution room of 2nd floor is on top of IT room of 1st floor, so we suggested whole system can be installed in IT room, Etron can reuse most of power cable.   一期工程為IT機房，前期安裝200KVA Agil UPS 系統機柜 + 2臺20KVA Agil UPS 模塊，共40KVA，為20KVA +20KVA 冗余。 1st step of whole project is IT room project, Etron requested 200VA Agil UPS system + 2 X 20KVA Agil UPS module, total 40KVA ( 20KVA + 20KVA redundancy) 出廠前照片 Picture: equipment in factory just before shipment.  安裝中照片 Picture : Installation   安裝后配置調試中照片 Pictures: Adjustment and configuration after installation  以下是客戶在選擇前的評估報告 Below is the evaluation report before selection  項目的二期工程將在易德龍生產線完成重新規劃后進行。 2nd step of project will be implemented after Etron production line re-layout. |
